Adding Facilities to a Successful Asset Management System

Overview

Take a look at the dTIMS Asset Management Journey to see how dTIMS enables you to incorporate all of your agency’s infrastructure assets into one common platform. Traditionally, most agencies begin their asset management journey with pavement assets, but your roadmap to successful asset management can start with any asset.

No other agency epitomizes the dTIMS Asset Management Journey like the Colorado Department of Transportation (CDOT). CDOT began its asset management journey in 1997 when they implemented their road network. Since then, they have integrated multiple assets into dTIMS for strategic and tactical planning, including:



Pavement Assets

  • Analyzed based upon driveability life.

Bridge / Culvert Assets

  • Analyzed based on percent structurally deficient.

Fleet Assets

  • Includes fleet and equipment (such as snow plows and chip spreaders).
  • Analyzed based upon the percent life (miles and age).

Maintenance Level of Service (MLOS)

  • Includes traffic control, training, schedule control, snow and ice control, and more.
  • Data is collected for the level of service analysis through surveys conducted during the course of the year, and letter grades are assigned.  Resulting level of service grades can be determined for various levels of investment.

ITS Assets

  • Includes fiber optic, network equipment, and CCTV cameras.
  • Analyzed based on percent life.

GeoHazards

  • Includes landslides, rock fall, debris flows, and avalanches.
  • Analyzed in terms of risk categories. CDOT uses dTIMS to analyze the high risk sites, which helps determine funding needs and mitigation strategies.

Signals

  • Analyzed based upon percent life.
  • CDOT will be conducting an intersection by intersection prioritization to replace all the components.
  • Three treatments for signals: total replacement, controller cabinet-only replacement, and/or controller-only replacement.

Tunnels

  • Currently under development.
  • CDOT expects complete implementation in 2015.
  • Colorado has four manned tunnels and approximately twenty-two un-manned tunnels that will be brought into dTIMS. CDOT will take the same approach recommended for buildings, as both tunnels and buildings have structural and system components.
  • The U.S. Department of Transportation will release management guidelines for tunnels in the near future.

Walls

  • Future plans include adding retaining walls into dTIMS.
  • CDOT maintains approximately 17,000 different walls across the state. The goal set out by CDOT is to collect 25% of the walls each year. This goal is a major collection effort which requires a significant investment in data collection.

Challenges

Like many DOTs, CDOT has limited financial resources and must weigh the investment in facilities against the investment in other core transportation assets.  To help determine funding needs and investment priorities for the building assets, CDOT included the building assets into AIMS, the CDOT Asset Investment Management System implemented in dTIMS.  Using AIMS, CDOT determined funding needs and investment priorities for the building assets themselves. They also included the building assets in the AIMS Cross Asset Analysis, which helped them to determine effective investment levels in light of all assets included in AIMS.

Building Inventory

CDOT maintains about 1,200 different facilities. These facilities are divided into different categories, including:

  • storage sheds (355)
  • employee housing trailers (108)
  • vehicle maintenance and repair facilities (311)
  • offices (76)
  • sand sheds (189)
  • traffic shops (15)
  • rest areas (145) including full service rest areas and picnic shelters
  • laboratories (8)

Data Collection and Performance Indexes

CDOT uses two different data collection forms for facilities: one for offices, and another for all other building types. Elements of the buildings are rated, and then those ratings are turned into indexes (as described in the following sections). The component scores are rolled up into an overall score for the building, which leads to a level of service rating of A, B, C, D or F.  CDOTS performance goal is to keep 90% of all buildings at a grade of C or better.

Structure Index

At the structural level, CDOT examines the facilities’ glazing, roof, and exterior walls. Deighton used the weighting that CDOT applied to those individual elements with the total weighted score, divided by the number of non-zero values to arrive at the index score. A letter grade was assigned based on the results. This letter grade was the structural rating.

Systems Index

For the buildings that have systems, CDOT examined the HVAC units for heating, radiant heat if it existed, air conditioning if it existed, plumbing systems, and electrical systems. Each system was assigned designated weighting and received an overall system score. For example, air conditioning is currently weighted much less than heating systems.

Site Index

For the site rating, CDOT examined the condition of the parking lot, including an inspection of the sidewalks and curbs, site lighting, entrance lighting, site drainage, fencing, and MS4 compliance. CDOT reviewed all of the safety regulations for compliance secondary containment, applied the appropriate weights, and assigned letter grades.

For the maintenance facilities, the major focus was the bay doors. Are the bay doors big enough to get the equipment inside in the winter, and is the bay big enough to hold the required amount of equipment? The same weighting principles were applied to storage facilities. The highest rating for maintenance buildings and vehicle storage facilities were assigned to those which fit the most equipment inside.

Components Index

For the components, CDOT examined interior walls, interior/exterior doors, the condition of the bay doors, ceiling/flooring, bays, lighting, and so on. The rated components coincide with the component rating for the maintenance buildings.

Compliance Index

In addition, CDOT must comply with extensive legislation regarding containment and safety standards, so consideration was given to the Compliance rating. Does the maintenance facility or office building have a shower, a break room, and/or change rooms? What’s the proximity to the roadway? All CDOT maintenance facilities and office buildings must be on a state highway network and close to the roadways to maintain visibility. Other compliance factors include: handrails in hallways, door hardware, bathrooms, drinking fountains, signage, and more.

Overall Score

The overall score is the total weighted score divided by the nonzero values.


Solutions

Performance Prediction

For each of the performance measures included in the CDOT AIMS building analysis, performance models were developed to predict the ratings into the future so that maintenance, preservation, rehabilitation, and replacement treatment strategies can be developed to determine funding needs.

The performance prediction models for predicting the Structural Condition Rating were based upon the Marshall and Swift classification and the type of Property.  Performance prediction models for other indexes were based upon subject matter expert predictionsA typical performance model for the structural index at a maintenance and repair facility built to classification A would see 40 years in A condition, 30 years in B condition, 20 years in C condition, and finally 10 years in D condition before moving to F.  A building can stay at F indefinitely.

dTIMS Treatments

Facilities are designated with one of four treatment options in dTIMS:

  • Minor repair: Addresses one or two of the different components when the facility is in fair condition.
  • Major repair: Includes more expensive repairs from fair to poor condition.
  • Refurbishment: Restoring the interior of the building but not tearing the structure down. For example, the interior of the building needs to be enhanced, or the furnishings are old, interior conditions are poor and require a total refurbishment, but not a replacement.
  • Complete Replacement: Tearing the structure down to rebuild.



The dTIMS analysis predicts each of the condition indices out for 20 years and then examines them each year to develop preservation and rehabilitation strategies.  A strategy may consist of one or more treatments applied throughout the analysis period.  Once the strategy generation is complete, each building will have a number of alternative strategies that can be used to maintain the building over the analysis period. These alternative strategies are passed through the optimization feature to determine which strategy is best, depending on the total resources available.

Budget Scenario Analysis

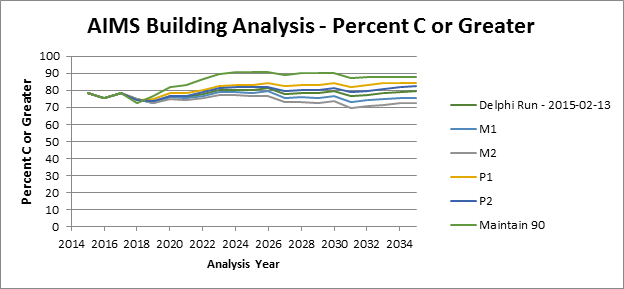

The Optimization feature displays different scenarios, which can vary the amount of available funding and the distribution of funding into different categories.  CDOT typically optimizes six scenarios for each asset of varying amounts, as well as 10 different scenarios for the dTIMS Slider Tool (Strategic Analysis Module).  Each of the budget scenarios results in a select strategy for each building.  One scenario is used to try and maintain the performance goal for the asset, in this case reaching 90% of the buildings in “C” or better condition.  An example of the output from the analysis is shown in the following figure, indicating the resulting condition for the various scenarios.

The scenario analysis indicates that a significant investment is necessary to meet the goal of maintaining the building assets at 90% C or better.

By including the assets in AIMS, CDOT is able to determine the investment necessary to meet the performance goal and identify candidate projects for each of the alternative scenarios.  The output from the analysis is used by the property management team at headquarters and the regions to plan and prioritize preservation, rehabilitation, and building replacement needs.


Considering Adding a New Asset to your dTIMS?

dTIMS is a flexible solution, and accommodates asset management for virtually any asset under management within your agency.  No matter where your asset management journey begins, or what assets you want to include, dTIMS can help you make data driven investment and funding need decisions for assets individually and collectively.

The following tasks outline what is required to implement an asset management analysis for any asset:

  • Determine performance measures from collected data.
  • Develop scoring mechanisms and index calculations based on the developed performance measures.
  • Develop performance models and deterioration curves for each performance measure.
  • Develop treatment interventions for various stages of performance including treatment triggers, treatment costs and treatment resets.
  • Develop a data structure and data loading process so that required supporting data can be loaded into dTIMS.
  • Configure the dTIMS database to accept the data.
  • Configure the dTIMS analysis including all required analysis variables, treatments, analysis expressions, analysis sets, and budget scenarios.
  • Execute, test, and refine the analysis as necessary and configure a series of output reports to demonstrate the results analysis.
